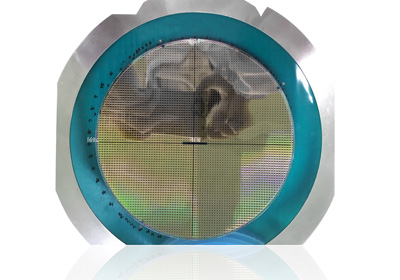

A wafer, also called a slice or substrate, is a thin slice of semiconductor material, such as a crystalline silicon, used in electronics for the fabrication of integrated circuits and in photovoltaics for conventional, wafer-based solar cells. The wafer serves as the substrate for microelectronic devices built in and over the wafer and undergoes many microfabrication process steps such as doping or ion implantation, etching, deposition of various materials, and photolithographic patterning. Finally the individual microcircuits are separated (dicing) and packaged.



LM5025A Die


Active Clamp Voltage Mode PWM Controller

DIE/WAFER CHARACTERISTICS
Fabrication Attributes General Die Information
 Physical Die
 Identification		  LM5025A  Bond Pad Opening   Size  (min)  91μm x 91μm
 Die Step  A  Bond Pad Metalization  Al_ 0.5%Cu
Physical Attributes  Passivation  PECVDOX+NITRIDE
 Wafer Diameter  150mm  Back Side Metal  BARE BACK
 Die Size (Drawn)  2286μm x 2540μm         90.0mils x 100.0mils  Back Side Connection  Floating
 Thickness  254μm Nominal
 Min Pitch  167μm Nominal
Special Assembly Requirements:
Note: Actual die size is rounded to the nearest micron.

    LM5025 MDC MWC
    ACTIVE CLAMP VOLTAGE MODE PWM CONTROLLER
                          LM5025A Die封裝圖
